Single processing water volume	16-2800m³/h	Maximum working pressure	0.2-1.6Mpa
Pressure loss during filter cleaning	≤0.018Mpa	Maximum water temperature	95℃
Filtering accuracy range	10-3000μm	Water required for self-cleaning	<1%
Self cleaning time	10-60S	Self cleaning control method	Pressure difference, time, and manual operation
Electric control mode	380V/50Hz	Control interface	Digital display, knob, switch、PLC、485
Filter type	316L	Auxiliary material	Q235B、304、316

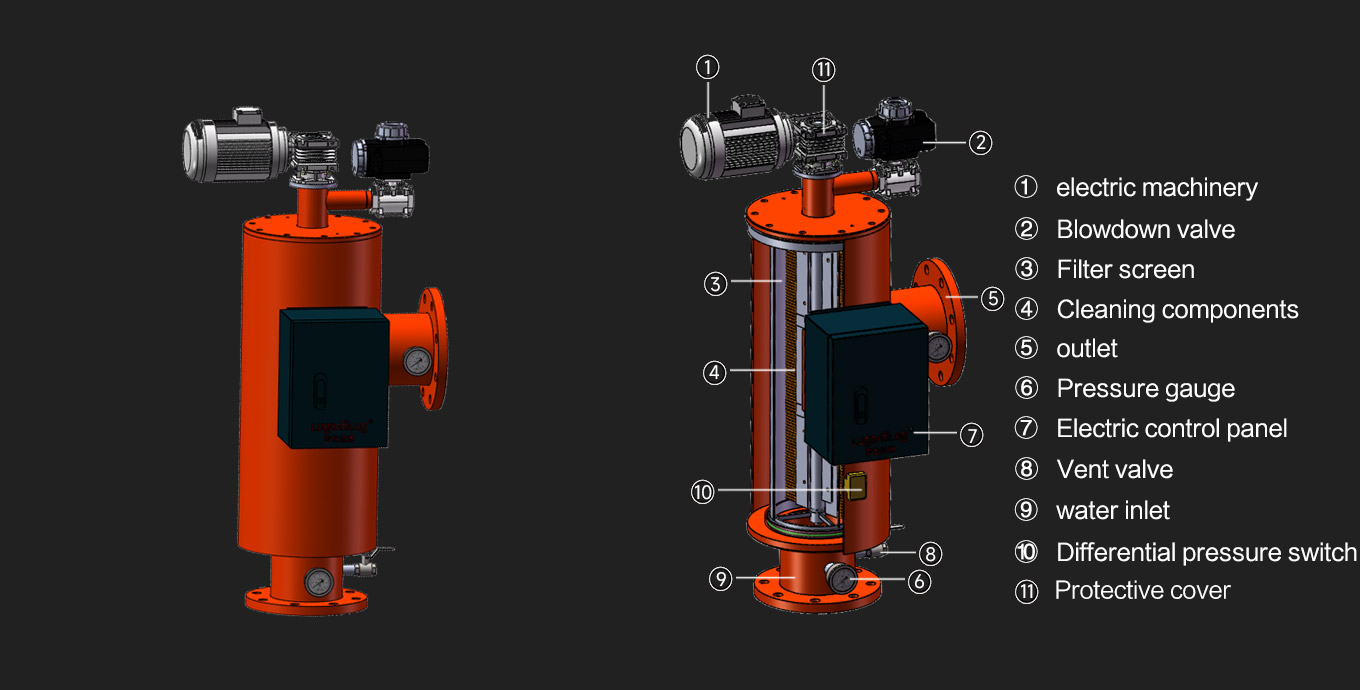

◆ working principle

The water to be treated enters the body through the inlet, and impurities in the water deposit on the stainless steel filter screen, resulting in a pressure difference. By monitoring the pressure difference changes at the inlet and outlet through a pressure difference switch, when the pressure difference reaches the set value, the electric controller sends a signal to the drain valve and drive the motor, triggering the following actions: the motor drives the cleaning component to rotate to clean the filter element, and the control valve opens to drain. The entire cleaning process only lasts for tens of seconds. When the cleaning is completed, the control valve is closed, the motor stops rotating, and the system returns to its initial state, Start the next filtering process. After the installation of the equipment, technicians will debug it according to the on-site water quality, set the filtration time and cleaning conversion time. The water to be treated will enter the body from the inlet, and the filter will start working normally. When the preset cleaning time is reached, the electric controller sends signals to the hydraulic control valve and driving motor, triggering the following actions: the electric motor drives the cleaning component to rotate, cleaning the filter element, and the control valve opens to drain. The entire cleaning process only lasts for tens of seconds. When the cleaning is completed, the control valve is closed, the motor stops rotating, the system returns to its initial state, and the next filtering process begins.

model	caliber（inch）	Inlet and outlet（mm）	J（mm）	J1（mm）	J2（mm）	Y（mm）	Y1（mm）	K（mm）	Filter screen area（cm²）	Water treatment capacity（m³/h）	weight（Kg）
CNAF-JT02	2	50	1005	456	743	580	257	491	1165	16	77
CNAF-JT03	3	80	1005	456	743	580	257	491	1367	45	77
CNAF-JT04	4	100	1005	456	743	580	257	491	2095	65	77
CNAF-JT05	5	125	1005	456	743	580	257	491	2351	105	77
CNAF-JT06	6	150	1260	605	995	617	303	561	3014	150	130
CNAF-JT08	8	200	1260	605	995	617	303	561	4472	265	130
CNAF-JT10	10	250	1823	890	1469	761	393	660	10200	410	290
CNAF-JT12	12	300	1823	890	1469	761	393	660	10200	590	290
CNAF-JT14	14	350	900	1552	1782	1290	1139	500	12000	900	430
CNAF-JT16	16	400	900	1552	1784	1290	1139	500	12000	1200	550
CNAF-JT18	18	450	950	1700	1943	1290	1139	600	15000	1500	680
CNAF-JT20	20	500	950	1700	1943	1290	1139	600	15000	2000	720
CNAF-JT24	24	600	1000	1722	1963	1290	1139	650	18000	2800	915

◆ Application scope

      metallurgy：Continuous casting water, high-pressure dephosphorization water, clean circulating water, turbid circulating water filtration, full filtration of cooling water, side filtration, nozzle protection
      power：Turbine cooling water filtration, ash water recovery filtration, dust suppression nozzle protection, full filtration and side filtration of cooling tower water
     raw water：Filtering of sand, algae, and organic matter during extraction of lake, river, reservoir, well, rainwater, and groundwater
      agriculture：Sprinkler and drip irrigation water treatment
      other：Construction, steel, petroleum, chemical, electronics, power generation, textile, paper, food, sugar, pharmaceutical, plastic, automotive industries
Widely used in drinking water treatment, building circulating water treatment, industrial circulating water treatment, sewage treatment, mining industry water treatment, golf course water treatment and other fields. Domestic application water pretreatment, various industrial water production, water supply treatment pretreatment, reclaimed water treatment, wastewater treatment, various operating conditions circulating water filtration

◆introduce

The fully automatic self-cleaning filter is a precision equipment that directly intercepts impurities in water through a filter screen to purify water quality and protect the normal operation of other equipment in the system. Water enters the self-cleaning filter body from the water inlet. Due to intelligent (PLC, PAC) design, the system can automatically identify the degree of impurity deposition and signal the sewage valve to automatically discharge. The fully automatic self-cleaning filter overcomes the many shortcomings of traditional filtering products, such as low pollution capacity, easy blockage by dirt, the need to disassemble and clean the filtering part, and the inability to monitor the filter status. It has the function of filtering the raw water and automatically cleaning and discharging the filter element. The system also provides uninterrupted water supply during cleaning and discharging, which can monitor the working status of the filter with a high degree of automation. Covering various filtration accuracy requirements from 10um to 3000um, we provide customers with circulating water filtration equipment.

◆ Features of fully automatic self-cleaning filter

◆The design structure is simple.

◆Short backwash time, low flow rate, and pressure loss.

◆The control system is intelligentized (PLC, PAC) and has a high degree of automation.

◆The device can be connected to the central control system.

◆High precision filtration ensures stable effluent quality.

◆The filter is used for life and does not require replacement.

◆Long service life.

◆Suitable for different raw water quality and water usage requirements.

◆Less vulnerable parts, no consumables, low operating costs, and simple operation and management.

◆Automatic backwashing without interruption of flow.

◆Selection of fully automatic self-cleaning filters

◆Filtering accuracy conversion

micron	10	25	30	40	50	80	100	120	150	200	400	800	1500	3000
Mesh count	1500	650	550	400	300	200	150	120	100	80	40	20	10	5
millimetre	0.01	0.025	0.03	0.04	0.05	0.08	0.1	0.12	0.15	0.2	0.4	0.8	1.5	3.0

◆How to choose a suitable filtering scheme

In order to achieve the best filtering effect and meet the user's requirements for water, electricity, and labor saving to the maximum extent, please consult the LuoLun(LUO DAO LUO) filtering dealer. LuoLun(LUO DAO LUO) filtration authorized agents and distributors have received professional technical training from LuoLun(LUO DAO LUO) filtration experts. They will make the best choice for you with their professional knowledge, rich market experience, and rigorous scientific attitude.

◆When selecting filters, please consider the following factors

▲Water treatment capacity

▲Pipeline pressure of the system

▲User requested filtering accuracy

▲Concentration of suspended solids in filtered impurities

▲Physical and chemical properties of filter media

◆Special Purpose Filter

LuoLun(LUO DAO LUO) filtration can be designed and produced for various pressure ranges according to user needs; LuoLun(LUO DAO LUO) filtration uses a special process to produce filters with temperatures up to 95^oC. For filters that need to work in cold conditions, LuoLun(LUO DAO LUO) filtration will use a special filtration control system; In response to the strong corrosiveness of seawater, LuoLun(LUO DAO LUO) uses special materials such as nickel and titanium alloy for filtration, and performs special processing on the filter; LuoLun(LUO DAO LUO) filtering can provide targeted solutions based on user specific operating conditions and requirements.
